LEVSEN’s Hydrostatic Submersible Level Transmitters Series SBLT is most suitable for continuous monitoring and measurement of clean liquid level in wells, deep sump , tanks, channels and dam

OPERATION

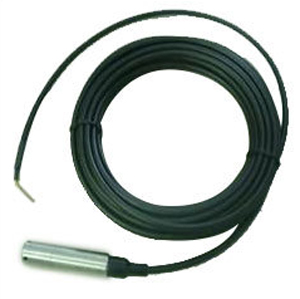

Submersible Level Transmitter is designed for direct submergence in liquid for quick, accurate and reliable level measurements. The Transmitter is suspended through its cable in the liquid. The Transmitter consists of a sensing element encased in 316 SS which measure hydrostatic pressure of liquid medium. It converts the hydrostatic pressure into a current or voltage signal. Level information travels via an electric signal which changes linearly and proportionally to changes of the hydrostatic pressure above the sensor

TECHNICAL SPECIFFICATIONS

Measuring Range: 5,10,20,50 &100 Meters
Sensing Element: SS 316L
Sensor Enclosure: SS 316
Protection Class IP68
Suspended Cable Length: Up to 150 Meters (Max)
Cable: Rubberised –Polyethylene
Temperature Limit: 80°C (Max.)
Output: 4-20 mA , 2 Wire
Supply Voltage 24 VDC
Accuracy: ±0.25 FS
Mounting: Top (Cable Suspended)

Application

Examples • Deep wells • Reservoirs • Sumps • Water remediation systems • Lift stations • Cooling towers • Tank level

Features and Benefits

Easy Installation in any shape of tank or open pit without empting the tank A small opening of 40 mm is enough on the tank top to insert and hanged it by its cable Can be simply hanged from top of the tank without making any mounting arrangement. Provide very long measuring range for tank and open pit depth up to 100 Meters Sealed stainless steel SS 316 durable construction for long life in harsh environment
