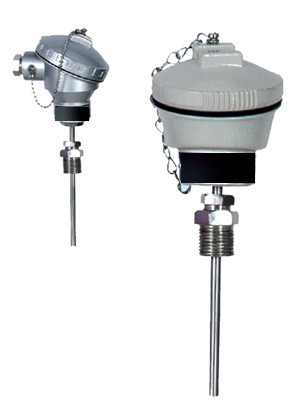

A ResistanceTemperature Detectors (RTD),sensors used to measure temperature by correlating the resistance of the RTD element with temperature. Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is usually quite fragile, so it is often placed inside a sheathed probe to protect it. The RTD element is made from a pure material, typically platinum, nickel or copper. The material has a predictable change in resistance as the temperature changes and it is this predictable change that is used to determine temperature.

LEVSEN make offering wide range of RTD for general purpose to demanding Application these are available in 2 wire or 3 wire Configuration, the varity of sheathing makes it Suitable for most critical applications.

ELEMENT TYPE : RTD (PT-100 / 500 / 1000) Copper-50
TEMPERATURE RANGE : -200 to + 850°C
CONFIGURATION : Simplex - 2, 3 Wire /Duplex 4, 6 Wire
ACCURACY : Class A, B
PROTECTION : IP-67
INSULATION : Compact MGO Filled / Mineral Insulated
SHEATH OUTER DIA : 3 MM to 14 MM
OUTER SHEATH : SS 316 JUNCTION : UN - Grounded
IMMERSION LENGTH : 25 MM to 10000 MM (Other on request)
CONNECTION HEAD MATERIAL : Die Cost Aluminium
NO. OF ENTRY IN HEAD : Single / Double
TERMINAL BLOCK MATERIAL : Ceramic With S.S. Base Plate
TERMINAL MATERIAL : Nickel Plated Brass
CABLE ENTRY : ½" ET, ¾" ET BSP / NPT (F)
PROCESS CONNECTION: ½", 3/8", ¾" BSP / NPT (M) Adjustable
