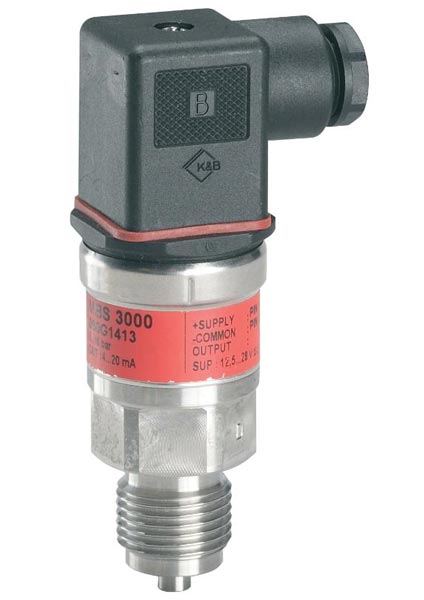

Pressure Transmitter - PT Series (Fixed Range Transducer Type)

PRESSURE RANGE : -1 bar…0 bar….600 bar….1000 bar
OUTPUT : 0…5 V , 0…10V , 0…20 mA , 4…20 mA
POWER SUPPLY : 10-36Vdc
ACCURACY : ±0.25 FS
MAX. PRESSURE : 1.5 X FS
ADJUSTABILITY : Zero/Span using internal potentiometer
AMBIENT TEMPERATURE: -20 to 80°C
OPERATING TEMPERATURE: -40 to 125°C ( Higher on request)
ELECTRICAL CONNECTION: M12 connector, five Pin bendix connector, Hirschman and Direct down-lead.
CASE. : Stainless Steel SS304/SS316
HOUSING : Stainless Steel, Protection Class IP 65
WETTED PART : Stainless Steel SS316L
PROCESS CONNECTION : G ¼”, G 1/2”, M20 X1.5 ,1/4”,1/2”NPT/BSP Threaded (M/F)

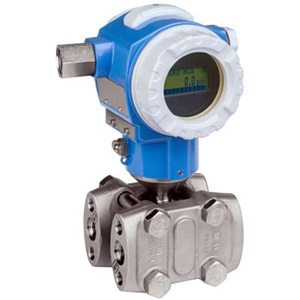

Pressure Transmitter – Smart Series (Smart Type HART Programmable with Digital Display)

Used to measure liquid, gas, or steam flow as well as liquid level, density and pressure, at the same time, this transmitter
accurately measures both differential pressure and line pressure, and displays this information on the multi-function LCD. TYPE: Smart with HART Protocol
DISPLAY: Digital LCD 4 digit
RANGE : 0 To 600 BAR (adjustable with turn down1:20)
POWER SUPPLY : 12 to 45 Vdc
OUTPUT : 4-20 mA DC – 2 wire, HART
ACCURACY :± 0.1% F.S.D On Full Scale,
PROCESS CONNECTION : G ½”, M20, ½” NPT
ELECTRICAL CONNECTION : ½” NPT (F),
TEMPERATURE : -20ºC To 85ºC,
CASE : Polyurethane Covered Aluminum,
ENCLOSURE: Weather Proof / Explosion Proof,
PROTECTION: IP65/IP67
WETTED PARTS : SS 316L
DIAPHRAGM MATERIAL : SS 316L
MOUNTING: Directly supported by piping or optionally with mounting bracket for 2” pipes or with direct or remote seats
ACCESSORIES: Mounting Bracket Along With Nuts And Bolts,
