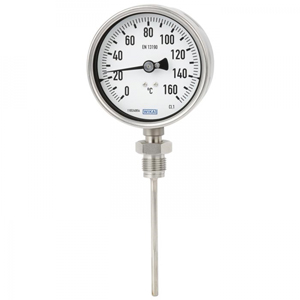

LEVSEN temperature gauges are ideal for most the rugged industrial applications, offering bimetal thermometers with hermetically-sealed cases to prevent damage from the weather and dust LEVSEN Bimetal type temperature gauge are made of two cold welded metal strips with different thermal expansion coefficient. They can be used in the following applications: chemical, petro chemical, gas and oil, food and pharmaceutical.

TECHNICAL SPECIFICATION

TYPE: BIMETAL
DIAL SIZE: 3”/4”/6”(75MM/100MM/150MM)
RANGE: 0-600 °C
PROCESS CONNECTION: 1/4”, 1/2,”3/4”, 1” Threaded BSP/NPT
SENSING: RIGID STEMTYPE/FLEXIBLE CAPILERY TYPE
STEM/BULB DIA: 6MM/8MM/10MM/12 MM
LENGTH: STEM UPTO 800 MM/ CAPILERY UPTO 4000 MM
ENTRY: BOTTOM/ BACK
ACCURACY: ± 1% FSD
OVER RANGE LIMIT: 125% FSD
PROTECTION: IP 55 / IP 65

MATERIAL OF CONSTRUCTION

CASE: SS 304/SS316/Aluminum
DIAL: Aluminum
POINTER: Aluminum
STEM & BULB: SS304/SS316
CONNECTION: SS304/SS316
WINDOW: Glass 4 mm Thick

FEATURES

Fast Response, Rugged Connection, Bottom /Back Entry, Hermitically Sealed Case, Accuracy: ±1%FSD, Ingress Protection: IP555/IP65

APPLICATION

Industrial heating system, hot water boiler, power plant, food & beverage industries
