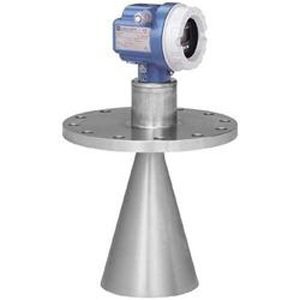

Non Contact Type Radar Level Transmitter is utilised in process industries for continuous. level monitoring of solids and liquids in hopper, tank, bin, or silo etc A radio wave is emitted via an antenna, reflected on the measuring surface and received back through Antenna. The Radar wave travels @ of velocity of light. The time taken by the wave is converted into level by the electronics

SPECIFICATIONS

Measuring Range: Up to 50 Meters
Output: 4-20 mA
Supply Voltage: 230 VAC/110VAC/24VDC
Communication System: Two Wire / Four Wire, HART/RS232/RS485
Process Temperature: -30°C to 150°C
Process Connection: Flanged or Threaded
Accuracy: ±0.25% of Range
Housing: Aluminium/SS316
Protection Class IP65/IP66/IP67/IP68

Application

Continuous Level Monitoring of Solids and Liquids tanks/hoppers/bins/silos of application material like solid lumps, granules powder , cement, fly ash, coal, clinker ,limestone, liquid like water, waste water, Oil, Chemicals, acids , caustics, solvents, food & beverage

Features

Non-contact measurement unaffected by dust generation and pneumatic filling, temperature, large partials ,fumes and vapours above process level Changing dielectrics or conductivity does not affect measurement accuracy Antenna designs allow level measurements in liquids, slurries, solids and granular measurements to 50 M. Optional Integrated Display
