LEVSEN offers high quality and low cost microcontroller based Temperature Indicators and controllers . It accepts input from J, K type thermocouple or RTD (Pt-100). Two independent set points are programmable over the full range. Each set point can also be configured for High Alarm (Internal relay energizes when actual temperature value exceeds the set point), Low Alarm (Internal relay energizes when actual temperature value is below the set point) :

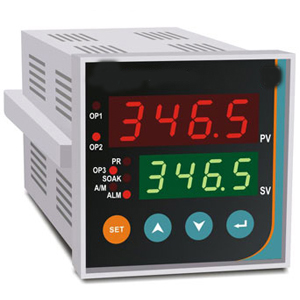

Specification of Digital Temperature Controller

• Range : 0-1800‚°C.
• Display : 3½ digit / 4digit 7Segment Red LED's.
• Power Supply : 230/ 110 VAC Or 24 VDC.
• Accuracy : . ± 0.2% of specific range.
• Resolution : 0.1/1‚°C. subject to specific Input and range
• Input: Thermocouple type J, ,K, RTD pt-100, 2 wire, 3 wire
• Nos. of set Point : Two ( Configurable for High & Low )
• Control Output : 2 relay ,contacts NO/C/NC , rating 5A @ 230Vac
• Output Indication : Front Panel LED Indication for O/P & Selected set poit
• Key Board Setting : Front panel membrane key pad for parameter setting
• Enclosure: ABS
• Size: 96 x 96 standard ( or other on request)
