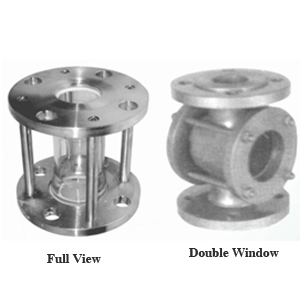

Sight Glass flow indicator is ideal for use of Liquid flow applications. These are simple, economical & reliable way to verify, see and monitor the flow of fluid in industrial process line.

SPECIFICATION

MOC: CI, CS, MS, SS 304, SS316, PP
Window: Toughened Borosilicate Glass
Packing: PTFE
CC Distance: 150 mm / 200 mm
Line Size: 15 NB to 200 NB
End Connection: Flanged / Threaded
Pressure: up to 20 Kg/Cm²
Temperature: up to 200°C
Option: Flapper, rotary Wheel
