OPERATING PRINCIPLE

The operating principle of Electromagnetic Magnetic flow meters is based upon Faraday’s Law of electromagnetic induction E = kBDV ( E-Induced Voltage, B- Magnetic Field Strength, D-Conductor Width, V- Velocitypf Conductor ) It state that a voltage will be induced in a conductor moving through a magnetic field. The magnitude of the induced voltage E is directly proportional to the velocity of the conductor width D, and the strength of the magnetic field B. Liquid acts as a conductor as it flows through pipes.

DISCRIPTION

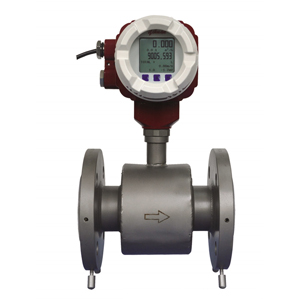

LEVSEN Electromagnetic Flow Meters are micro-controller based full bore type electromagnetic flow meters to accurately measure the flow rate of conductive liquids and slurries in closed pipes in various industrial application. It’s simple and rigid design makes it an obstruction less & maintenance free instrument. The use of ‘Pulsed DC’ technology offers highest ability & better measuring accuracy in the form of electrical signal 4 - 20mA DC linearly proportional to volumetric flow. LEVSEN full bore flow meter is a cost effective flow meter for conductive liquids such as Raw Water, Chilled water, effluents, Potable water and industrial chemicals.

TECHNICAL SPECIFICATIONS:

Media : Liquids (Conductive)
Conductivity : > 5 µs/cm
Viscosity : 200 cp max
Line Size : 15 NB to 300 NB
Excitation : Pulsed DC
Type of Output : 1) 4 to 20 mA DC, Isolated, HART 2) Pulse
Display : 16 x 2 LCD - 4 digit for Flow Rate & 8 digit for Totalised Flow
Accuracy : +/- 0.5% of F. S.
Linearity : +/- 0.5% of F. S.
Repeatability +/- 0.2% of F. S.
Process Temperature : 75° C max for Rubber Lining & 150°C for PTFE Lining
Process Pressure : 10 kg/cm² max
Power Supply : Option 1 : 24 V DC
Option 2 : 90 - 260 V AC, 50 Hz

Material of construction

Lining - Rubber / PTFE
Flange - CS / MS / SS304/SS316
Electrode - SS 316L / Hastalloy C / Platinum
Coil Housing - MS / SS 304
Transmitter Enclosure : Die cast Aluminum IP 66, Flow Tube IP 68
Process Connections : ASA 150 Flanged as Per Table B16.5
Mounting: In-Line Horizontal (Vertical on request)
Operating Conditions: Temperature 0 to 55°C / Humidity 5 to 95% non condensing

OPTIONAL Communication Port:

1) RS 485 supporting MODBUS RTU Protocol
2) GSM Communication
3) 4-20mA with HART

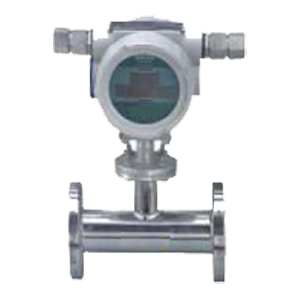

TURBINE FLOW METER

LEVSEN Turbine Flow Meters are 2 Wire type Flow Transmitter for reliable measurement of flow of clear liquid in a process line in industrial applications. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. The pick-up coil senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. Summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to the flow rate which is converted to electrical signal 4 - 20 mA .

TECHNICAL SPECIFICATION

Media : Liquids (Clear)
Viscosity : 100 cp max
Line Size : 15 NB to 150 NB
Display : 8 x 1 LCD - 4 digit for flow rate & 8 digit for totalized flow
Accuracy : +/- 1% of F. S.
Linearity : +/- 1%
Repeatability : +/- 1%
Pressure Drop : Approx. 0.28 kg/cm at max.
Flow Turn down ratio : 10 : 1 to 100 :
Process Temperature : 0 to 85°C max
Process Pressure : 0 to 10 kg/cm² max
Power Supply : 24 V DC
Transmitter Enclosure : Die Cast Aluminum IP 68
Process Connections : Flanged ASA 150 As per table B16.5
Mounting : In-Line ( Horizontal or Vertical )
Operating Conditions : Temperature 0 to 55 ºC / Humidity 5 to 95% non condensing
