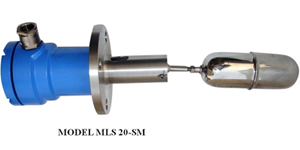

Simple Magnetic proven design Float Mounted at one end of rigid rod moves with changes in level .Magnetic capsule at other end rod moves accordingly with fixed micro switch contacts across the phase change accordingly.
|
Wetted part |
|
SS304, SS316, PP, PVC, PTFE Coating |
|
Process Connection |
|
Flanged / Screwed |
|
Enclosure |
|
Weather proof / Flame proof |
|
Switch |
|
Micro Switch rating 5 Amps. , 230VAC |
|
Contact |
|
NO/NC (Potential Free) |
|
Temperature |
|
150ºC max. |
|
Pressure |
|
20 kg/cm² max. |
Application
water, oil, chemical, solvent etc
Features
- High / Low Level Alarm
- Automatic Pump Control
- Safety Inter Locks Circuits
- Solenoid Valve Control.
- Prevention of Tank overflows
- Pump safeguard against dry running
