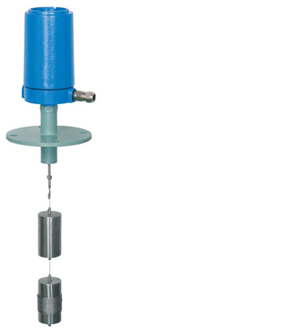

LEVSEN Top Mounted Displacer Operated Level Switch DLS 10 is very useful and reliable for controlling the liquid level in under ground and overhead tanks

Operation

Operation is based on a buoyancy principle where by a spring is loaded with weighted displacers which are heavier than the liquid under control. These displacers are suspended by spring with a suspension rope. Immersion of the displacer in the liquid results in a buoyancy force change, which changes the effective weight of displacers this causes the spring to retract slightly. As a result of retraction of spring, the attraction sleeve attached to spring move upwards into magnetic field of external magnet to trigger the switching action and vice-versa.

SPECIFICATION

Wetted part		SS304, SS316, PP, PVC, PTFE Coating
Process Connection		Flanged / Screwed
Enclosure		Weather proof / Flame proof
Switch		Micro Switch rating 5 Amps. , 230VAC
Contact		NO/NC (Potential Free)
Temperature		150ºC max.
Pressure		20 kg/cm² max.

Application

Large Sumps & Fuel Tanks, Boiler Feed Water, Waste Water & Sewage, Interface Liquids, Petrochemical, Generator Sealing Liquid etc.

Features

• High / Low Level Alarm , Automatic Pump Control, Safety Inter Locks Circuits ,Solenoid Valve Control.
• Prevention of Tank overflows / Tank empty, Pump safeguard against dry running
• Easy field set point adjustability over entire measuring range by adjusting its displacer position along the suspension rope
• Suitable for large tank depth: Up to 20 meters suspension rope with easy transportation
