LEVSEN stainless steel pressure gauges are designed to meet the requirement of demanding pressure monitoring application .These pressure gauges are commonly used in Chemical Processing, Petroleum Refinery, Petrochemical, Fertilizer, Thermal & Nuclear Power generating industry & process applications.

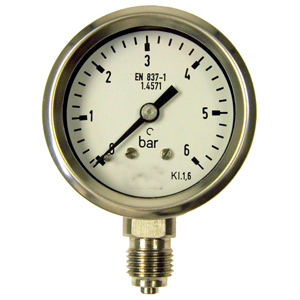

INDUSTRIAL PRESSURE GAUGE (SS INTERNAL)

DIAL SIZE : 50 MM, 63 MM, 100 MM, 150 MM, 250 MM
RANGE : -1 To 1000 KG/CM²
PRECESS CONNECTION: ¼”, 3/8”, ½”,3/4”,1” BSP/NPT
ENTRY: BOTTOM/BACK
ENCLOSURE : IP-65 As Per IS 2147,
SENSING ELEMENT : BOURDEN,
ACCURACY : ± 1% F.S.D.,
AMBIENT TEMP. : 0–20º To 65ºC,
PROCESS TEMP. : Max. 270ºC,
ERATING PRESS. : 75% OF Range Val.,
OVER RANGE LIMIT : 130% of F.S.D,
ZERO ADJUSTMENT : Micrometer Adjustment

MATERIAL OF CONSTRUCTION

Case, bazel & movement : ss 304
Bourden : ss 316, socket : ss 316,
Dial & pointer : aluminium
Gasket & blow of disc:epdm,
joints : argon arc,
Window: glass 4 mm thick

LEVSEN offer variety of Pressure gauges namely

• Commercial pressure gauges
• Glycerin field pressure gauges
• Hydraulic Pressure Gauges
• Industrial pressure gauges (complete SS)
• Pressure gauges with Electrical contact
• Compact capsule pressure gauges
• Schaffer diaphragm type pressure gauges
• Sealed diaphragm type pressure gauges
• Master pressure gauges
• Differential pressure gauge
• Duplex type pressure gauges
