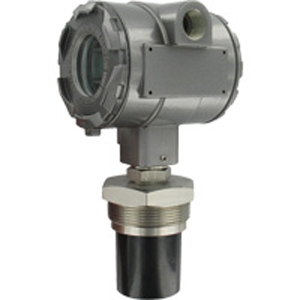

Ultrasonic waves are used to measure level of liquids and solid objects in industries. iple The Ultrasonic Level Transmitter works on the contactless principle of transmission of ultrasonic waves in air. A pulse is transmitted from the sensor face into the tank. This pulse travels through the air, gets reflected by the object surface and returns back to the sensor. The on board electronics measures this total travel time of the pulse and the level is computed.

Technical Specifications

Power Supply: 18 - 36 Vdc
Outputs : 4-20 mA (2 wire loop powered) / HART/RS232/RS485/MODBUS
Display : Backlit LCD (optional) /integral/non-integral
Measuring Range : 2,4,6,8, 10 and 15 Meters
Blanking Distance : 0.25m, 0.35m, 0.45m
Process Connection : Thread or Flanged
Transducer Material: PP and PVDF
Beam Angle : 5 deg.
Accuracy : 0.15% of measured distance + 0.08% of range
Process Temperature : - 30 deg C to +90 deg C
Process Pressure : 3 bar Maximum
Housing: Weather proof , SS/Cast Aluminium /PU/PP/ABS
Protection: IP65/IP66/ IP67/IP 68

l Raw Water l Heavy Water l Chilled Water l Effluent l Sewage l Oil l Sugar Syrup l Beverages l Juices l Acids l Alkalies And many more!

Features l 2 Wire Loop Powered l Narrow Beam Angle of only 5 deg l Built-in Temperature Compensation l Level, Volume and Flow Measurement l Optional Integrated Display l 32 bit linearization function
