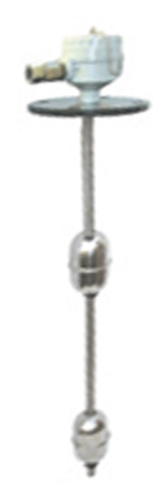

Simple Magnetic proven design Float moves up & down on Probe according to Liquid Level and Fixed limit switches inside the probe change their contacts by magnetic attraction.
SPECIFICATION
|
Wetted part |
|
SS304, SS316, PP, PVC, PTFE Coating |
|
Process Connection |
|
Flanged / Screwed |
|
Enclosure |
|
Weather proof / Flame proof |
|
Switch |
|
Micro Switch rating 5 Amps. , 230VAC |
|
Contact |
|
NO/NC (Potential Free) |
|
Temperature |
|
150ºC max. |
|
Pressure |
|
20 kg/cm² max. |
Application
water, oil, chemical, solvent etc
Features
- High / Low Level Alarm
- Automatic Pump Control
- Safety Inter Locks Circuits
- Solenoid Valve Control.
- Prevention of Tank overflows
- Pump safeguard against dry running
