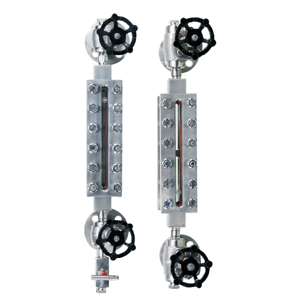

LEVSEN Reflex Level Gauge RLG 22 is designed for measurement of liquid level in vessels under high pressure & temperature conditions. It is a flat glass gauge, which has precision Moulded prismatic grooves cut on its inner side coming in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapor space is reflected back towards the viewers, making it appear silvery-white. Thus, a sharp clear line marks the liquid, eliminating all possibilities of errors in reading.

SPECIFICATION

MOC		M.S. /S.S.304/S.S.316 /PP
Cover plate		C.S/M.S/S.S.
Glass		Borosilicate
Packing		Teflon
Valve body		M.S. /S.S. 304/ S.S.316
Press rating		100 kg/cm (Max.)
Temp		300° C (Max.)
Range		0-2 meter.
Available Sizes		with Non IBR & IBR Certificates

Application

Suitable for high temperature & high pressure application & corrosive, colourless liquid under critical conditions LEVSEN Transparent Level Gauge TLG 22 is designed for measurement of liquid level in tanks under high pressure and temperature conditions. It consists of double flat glass mounted opposite to each other on a chamber. The glasses are held together by studs through cover plates. It is used for interface services or when the process is dirty or viscous.
