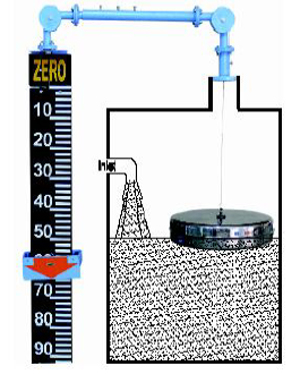

LEVSEN Float & Board Level Indicator is suitable for large and non – pressurized liquid storage tanks / vessels. The specific gravity of the fluid should be more than 0.6. Float is available in different material S.S.304/S.S.316/P.P./Teflon etc.The Float is design as per the specific gravity of the liquid, floating on the liquid levels. This Float is connected to a pointer through Rope via a Sets of Pulleys, Float moves up and down with rise and fall of liquid level in tank, the pointer moves/slides over a CM marked Board, installed parallel to the tank and indicates the level in tank. For more than 3 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.

SPECIFICATION

Range	As per tank height ( Max.20 Meters)
Float	SS 304/ SS 316/ PP, PVC/PTFE.
Measuring Rope	SS-304/SS316/Nylon/PP/PTFE.
Pulley	SS-304/SS316/ PP.
Scale Board	150 mm wide aluminium channel marked in CM
Least Count	1 CM
Pointer	Fluorescent red colour

Application

Level Measurement of liquid in overhead and underground Tank of liquid as Water, Waste Water DM Water , Furnace Oil, Lube Oil, Vegetable Oil, Alkalies, Chemical, acids Solvents etc

Features

A reliable, economical and accurate level indicator for tall overhead liquid tanks Clear Visibility of Fluorescent red colour pointer on wide scale board provide accurate indication / level information from distant location Dust free housing of pulley minimise the friction and provide smooth movement of rope Vapour Sealed for special application /evaporator nature liquid like HCL,N2, diluted HNO3/Alkalies, NH3,Methanol, Benzene, Toluene, IPA etc.
