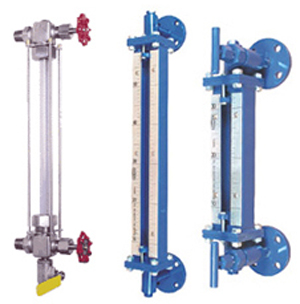

LEVSEN Tubular Level Gauge Series TLG 11 provide visual liquid level observation is very common in process industry. It is a simple and reliable device for direct reading in atmospheric or pressurized tank applications It is mounted parallel, along the side of tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication.
SPECIFICATION
|
SPECIFICATION |
|
|
Connection |
Screwed & Flanged ASA 150# |
|
End Fitting |
CS/S.S.304/S.S 316/P.P |
|
Protective Channel |
C.S.Rectangle / S.S.304/S.S 316 |
|
Glass Tube |
Borosilicate 19/16 /25 mm OD |
|
Packing |
Teflon |
|
Valve |
C.S./S.S.304/S.S. 316/P.P. |
|
Press Rating |
Max. 10 Kg/Cm² |
|
Temp Rating |
Max. 120 º C |
|
Range |
Max. 3 Meters |
Application
Chemical, , Pharmaceutical, , Water / Waste Water / Effluent treatment plants, cooling / Lubricating / Filtration systems, Liquid sewerage tanks, , Chemical reactors etc.
